[feature] Redesign JMH benchmark dashboards: grouping, search, dark mode - #6654

Open
duncdrum wants to merge 1 commit into
eXist-db:gh-pagesfrom
duncdrum:dp-nicer-bench-ghpages
Open

[feature] Redesign JMH benchmark dashboards: grouping, search, dark mode#6654
duncdrum wants to merge 1 commit into
eXist-db:gh-pagesfrom
duncdrum:dp-nicer-bench-ghpages

Conversation

@duncdrum

@duncdrum duncdrum commented Aug 23, 2026 •
edited
Loading

Copy link
Copy Markdown
Contributor

Summary

The default github-action-benchmark template renders one flat, unsorted
chart per benchmark+parameter-set with no navigation and no dark mode.
As more benchmarks were added this became unusable (168 charts on
exist-core-jmh alone). This replaces it with a grouped, searchable
dashboard.

The action only writes index.html when it's missing (addIndexHtmlIfNeeded
in github-action-benchmark's write.ts) — every run after that only
appends to data.js — so these files are safe to hand-maintain going
forward; no workflow change needed.

Before/after screenshots are in the comment below.

What changed

  • dev/bench/style.css, dev/bench/dashboard.js (new) — shared theme
    (light/dark, system-aware + manual toggle) and rendering engine: groups
    charts by class → method (one series per JMH param set instead of one
    chart per combination — exist-core-jmh 168→29 charts,
    exist-indexes-jmh 60→20), sidebar TOC + search/filter, log-scale
    y-axis for wide-spread series, and a per-chart %-change badge
    (direction-aware by unit — see the companion upstream issue below).
    Chart.js 2.9.2 → 4.4.4.
  • dev/bench/core/index.html, dev/bench/indexes/index.html — slimmed
    to shells loading the shared CSS/JS.
  • index.html — restyled root landing page.

CI

The failing Codacy check found 0 issues and analyzed 0 files for
this diff (confirmed via the Codacy API directly) — it's reporting
action_required, which on this repo's Codacy integration means "needs a
maintainer to view the dashboard," not "found a defect." gh-pages has no
branch protection, so this can't block merge either way.

Test plan

  • Verified in a local static server against real data.js from the
    live gh-pages branch — no console errors.
  • Confirmed chart-count reduction (168→29, 60→20) against the actual
    data.
  • Manually exercised search/filter, dark/light toggle (incl. live
    re-theming of already-rendered charts), and log-scale detection.
  • Maintainer review of visual design/density, especially
    ReindexDeleteStrategyBenchmark (up to 20 series per chart).
  • Confirm GitHub Pages redeploys cleanly from this branch.

🤖 Generated with Claude Code

@duncdrum
[feature] Redesign JMH benchmark dashboards: grouping, search, dark mode
6313293
Replace the default github-action-benchmark template (one flat unsorted
chart per benchmark+params, no navigation, light-only) with a grouped
dashboard: charts are combined per class+method with one series per JMH
parameter set, sections are collapsible with a sidebar table of contents,
a search box filters by class/method/param, and each chart shows a
percent-change badge against the previous run (direction-aware: ops/s-style
units treat higher as better, */op units treat lower as better). Also adds
dark mode (system-aware plus manual toggle), a log-scale y-axis for charts
whose series span more than ~15x, and upgrades Chart.js 2.9.2 -> 4.4.4.

exist-core-jmh drops from 168 individual charts to 29 grouped ones;
exist-indexes-jmh from 60 to 20. The default template is only written by
the action when index.html is missing, so these files are safe to
hand-maintain going forward.

Also restyles the root landing page to match.
duncdrum added a commit to duncdrum/exist that referenced this pull request Aug 23, 2026
@duncdrum
[doc] Add before/after screenshots for PR eXist-db#6654 review
34bdf49
Temporary review artifacts, not linked from any page. Safe to squash
out or delete before/at merge.
@duncdrum
duncdrum force-pushed the dp-nicer-bench-ghpages branch from 34bdf49 to 6313293 Compare August 23, 2026 16:23
@duncdrum

duncdrum commented Aug 23, 2026

Copy link
Copy Markdown
Contributor Author

Before / after

Before After

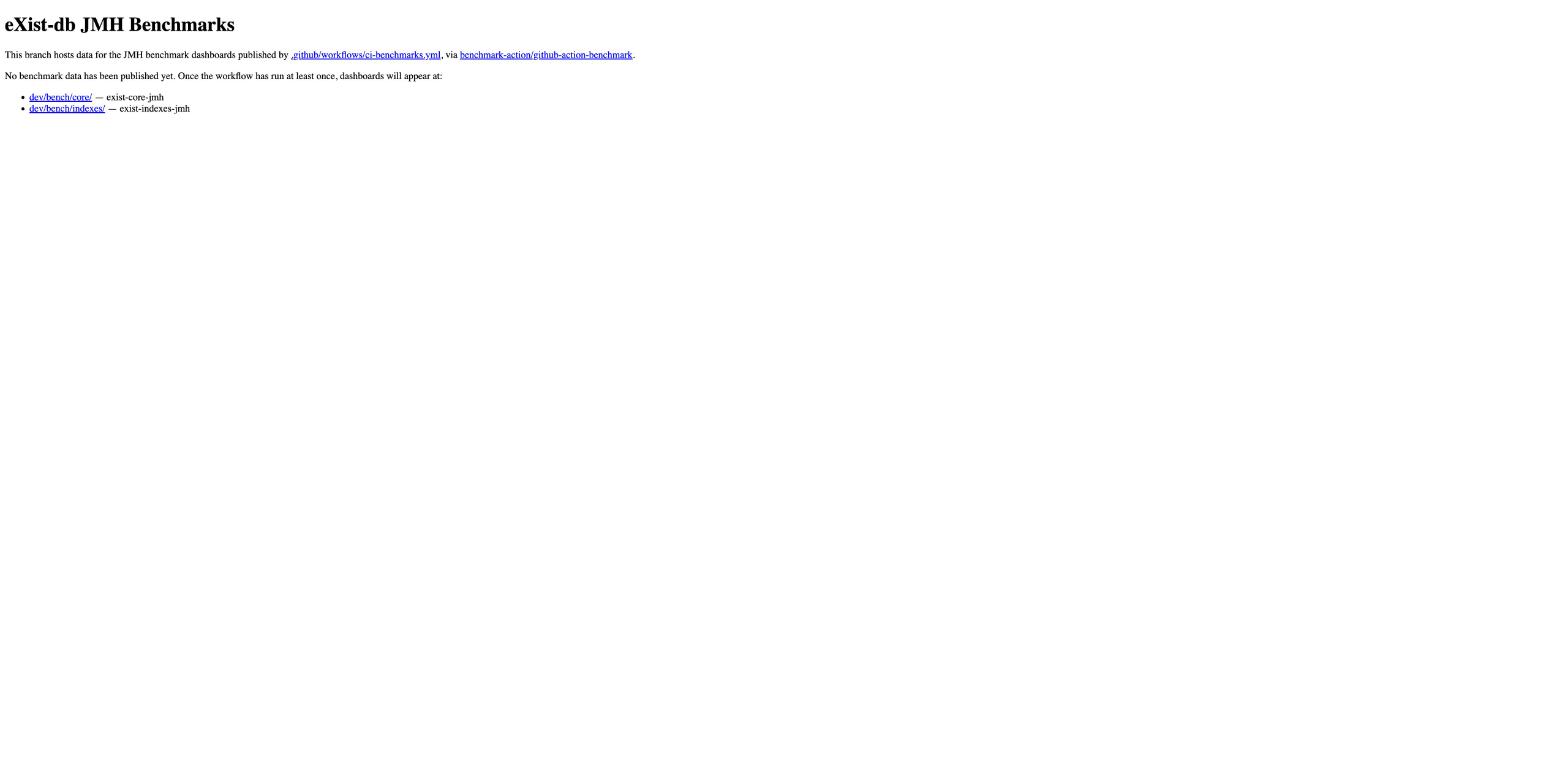

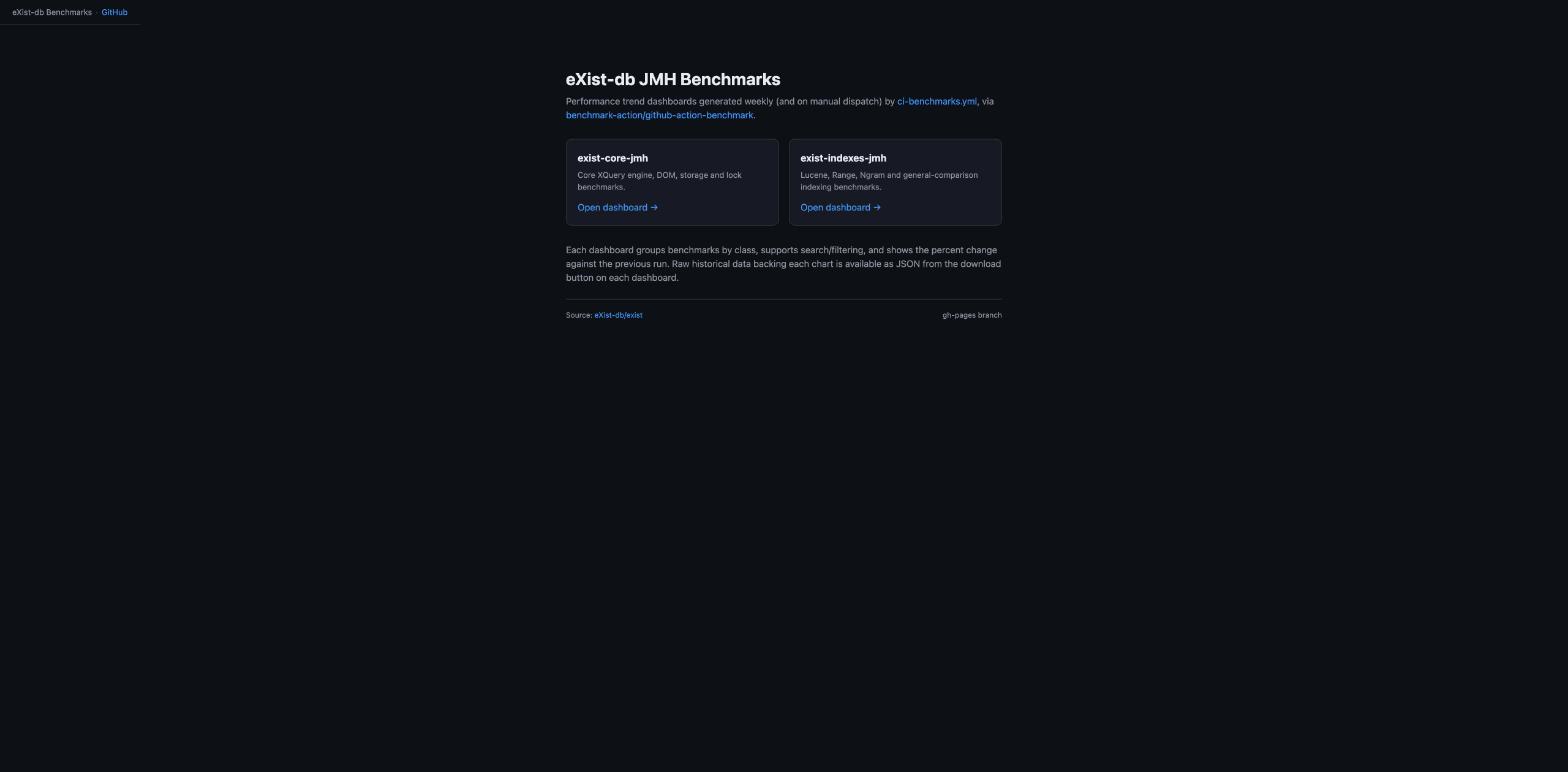

Root before after

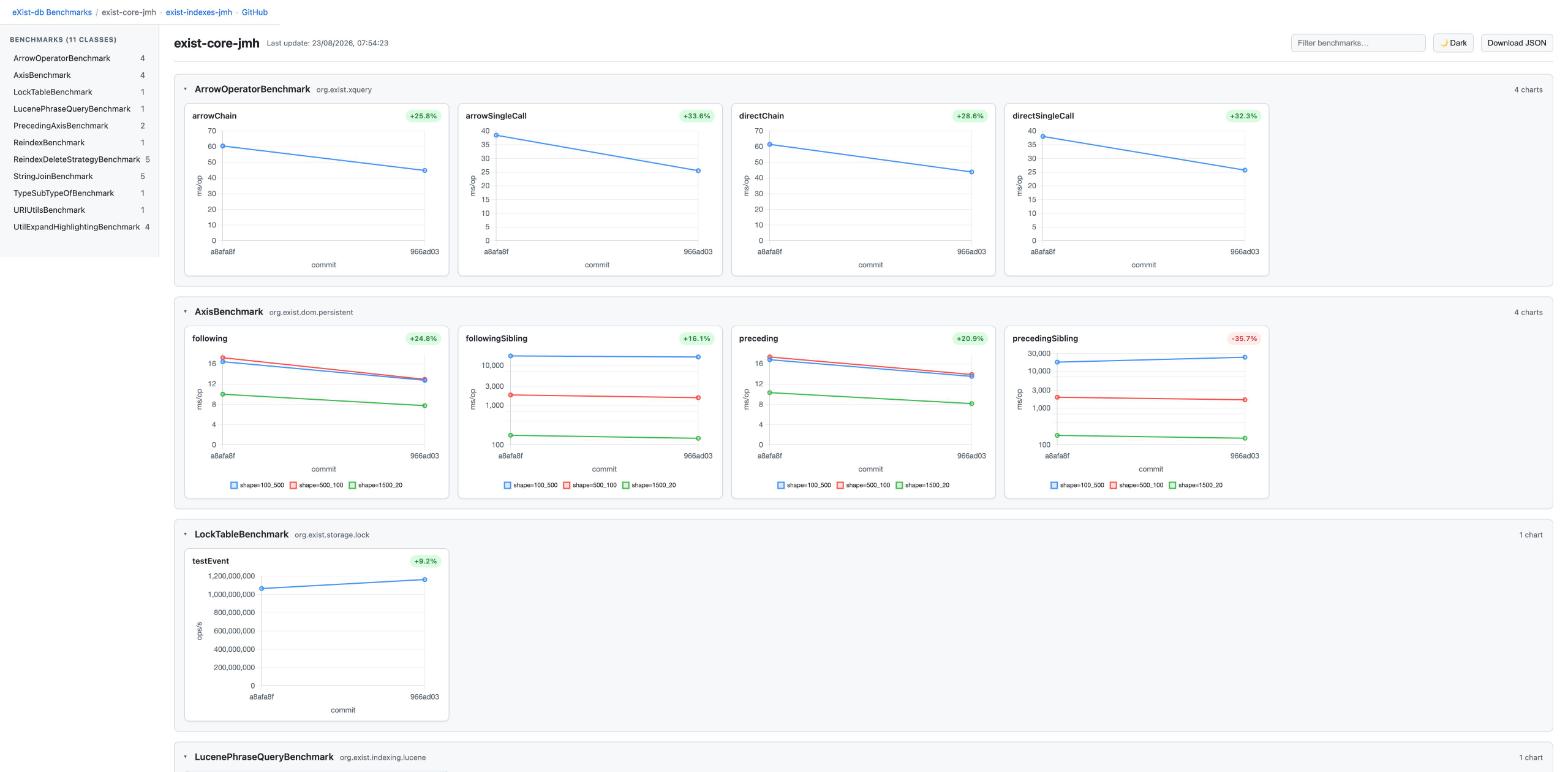

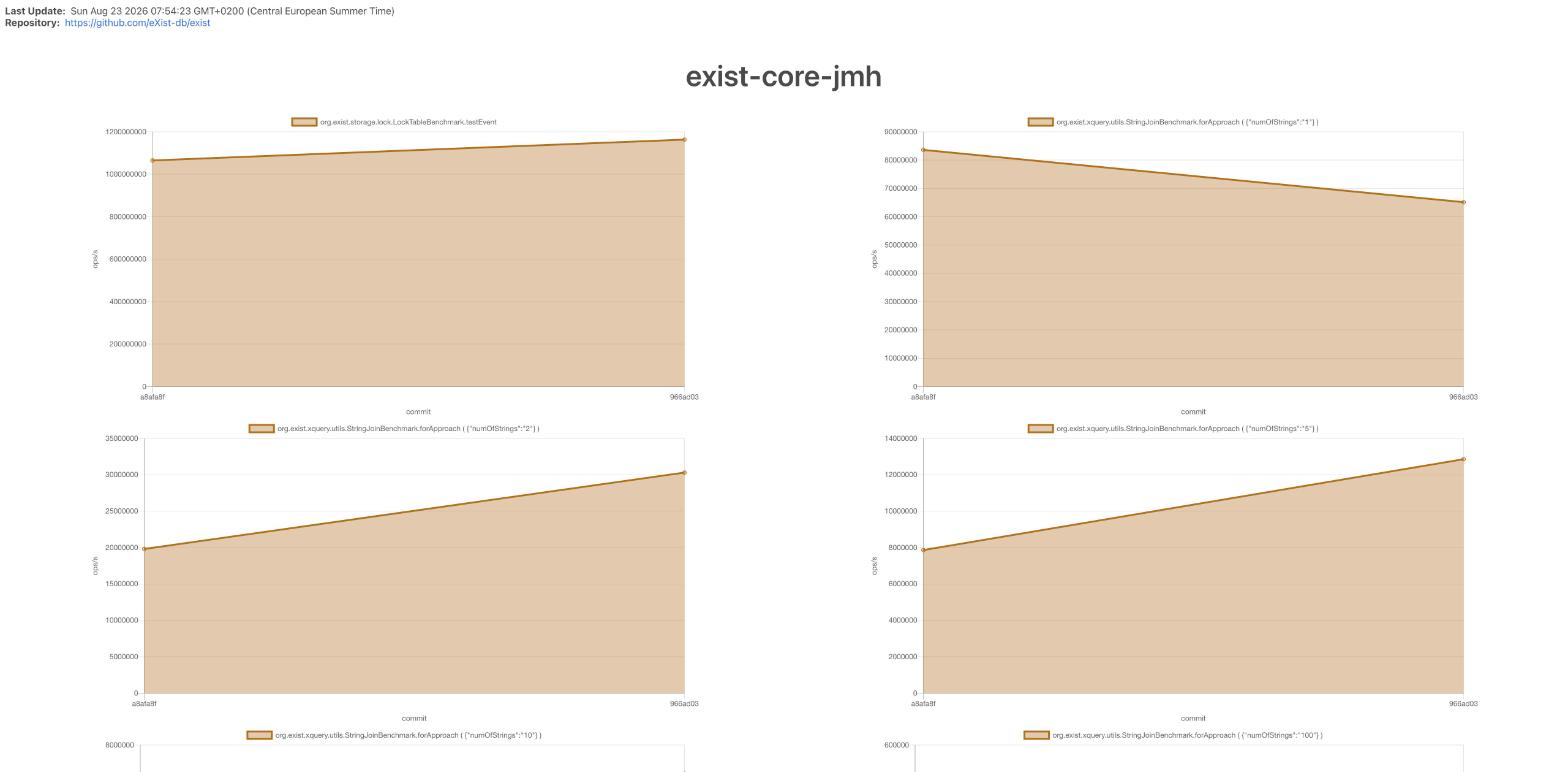

exist-core-jmh before after

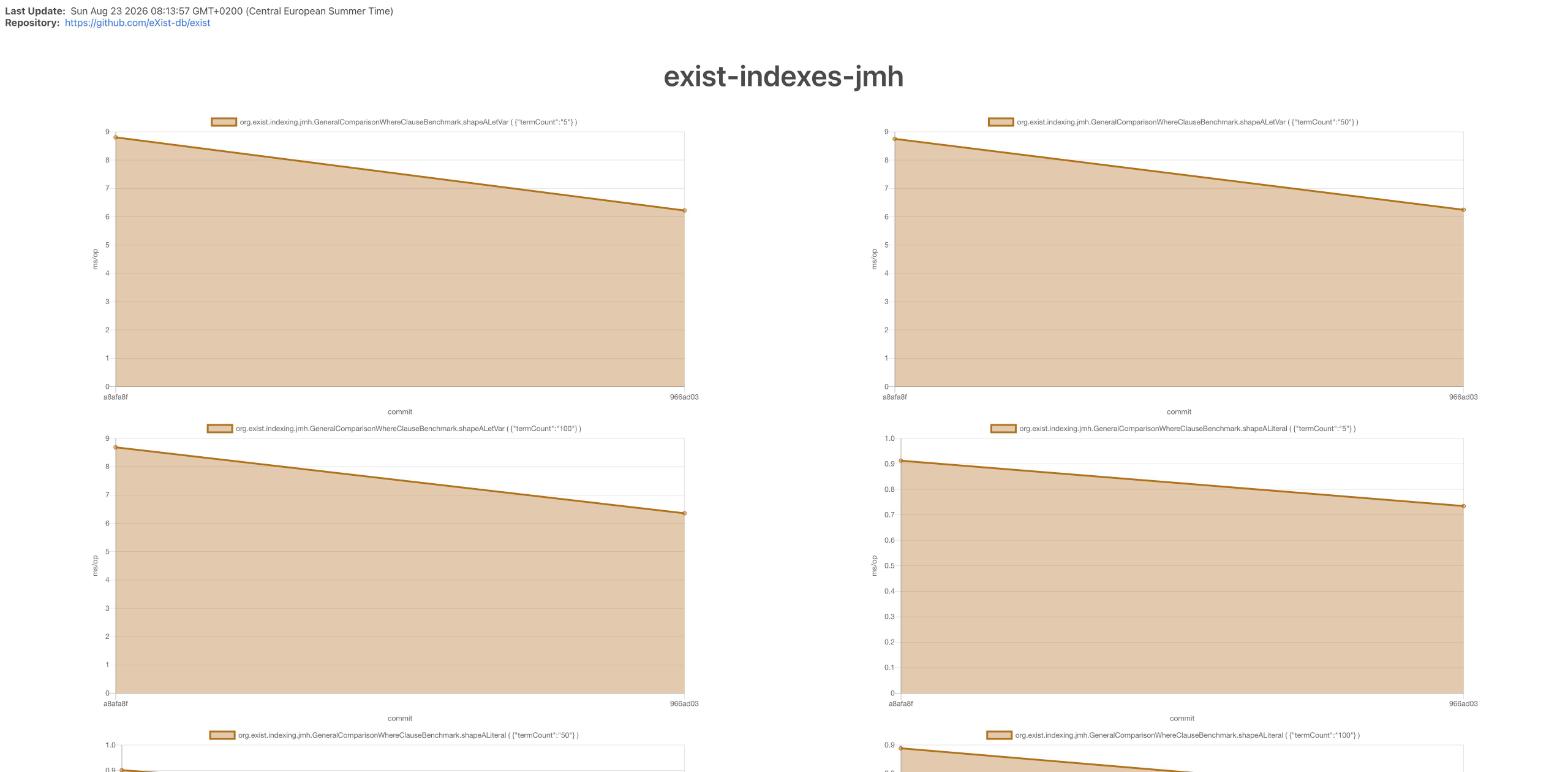

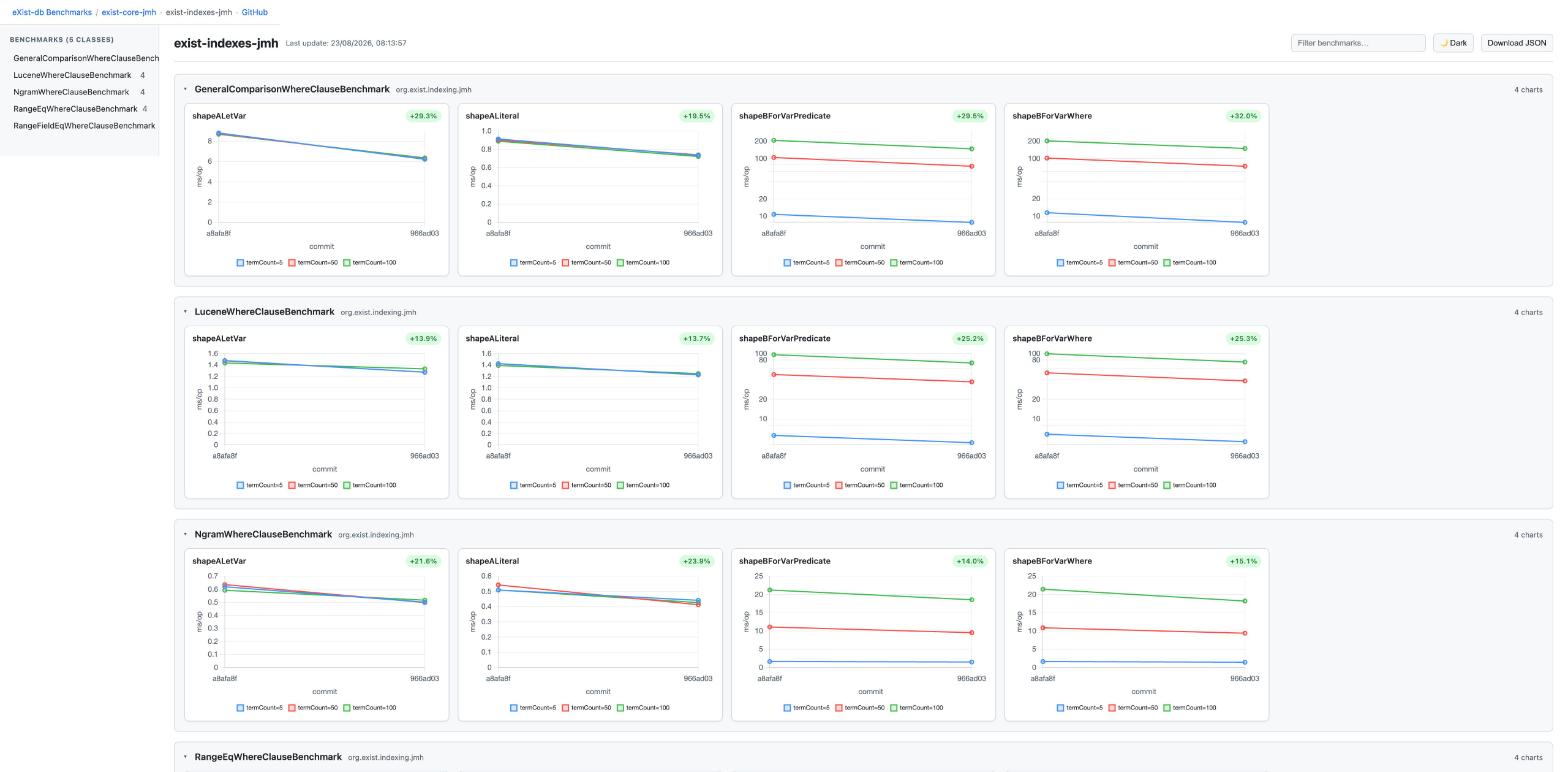

exist-indexes-jmh before after

Images are hosted from a standalone orphan branch (pr-6654-screenshots,
no shared history with gh-pages) — not part of this PR's diff or commits.

🤖 Generated with Claude Code

@duncdrum

duncdrum commented Aug 23, 2026

Copy link
Copy Markdown
Contributor Author

just to be clear there is only one commit in this PR, the screens are in a separate throwaway branch in my fork.

@duncdrum
duncdrum marked this pull request as ready for review August 23, 2026 16:33
