This project uses unconventional approaches in several critical areas (scene graph injection, skin buffer manipulation, binary patches). External contributions could inadvertently break invariants [...]

FO4_Wrld

Fallout 4 1.11.191 next-gen — multiplayer mod (FoM-lite framework). Solo-dev, evening project. Target: 10-player persistent-world survival MMO.

Status (2026-04-27): ghost player body animates in real time — ~31 joints (full body chain incl. head + hands) replicated over network at 20Hz. Walking / running / idle / sneak / turn / jump pose visible end-to-end (peer A moves → peer B's ghost-of-A mirrors). Body+head+hands all skin-swapped to shared skel hierarchy. Fingers stay at natural rest pose (no joints in render-scene tree → sentinel-skip avoids T-pose contagion). 1P sender → V/T-pose stub on ghost (deferred).

B6 wedge 1 shipped — door open/close sync across peers: peer A presses E on a door, peer B sees the same door swing open in real time (and vice versa). First true world-state replication beyond the player avatar + inventory. Sender hooks engine Activate worker (sub_140514180); receiver re-invokes the same function on its local REFR via main-thread queue + ApplyingRemoteGuard feedback-loop guard. Toggle semantics — both clients converge from the same world_base save without server-side state tracking.

M9 wedge 1+2 PoC shipped — clothing sync between peers [video coming soon]. Peer A equips Vault Suit / Raider outfit → Peer B sees the same clothing on A's ghost body, animated with A's pose. Sender hooks ActorEquipManager::EquipObject/UnequipObject, receiver walks TESObjectARMO → TESObjectARMA → TESModel to resolve the 3rd-person NIF path, loads the NIF, attaches it to the ghost, and re-binds the armor's skin to the shared skel.nif so animation propagates. Path scoring picks male 3rd-person variant over 1st-person/female fallbacks. Per-peer pending queue handles the boot-time race when ghost spawns after the peer's force-equip-cycle. Limitations: armor pieces ON TOP of outfits z-fight (no biped slot masking), some NIFs have bind-pose mismatch clipping (Vault Suit), Object Modifications (BGSMod) like shoulder pads/weapon mods not covered. See CHANGELOG.md.

---

Demo

▶ Watch the 90s demo on YouTube

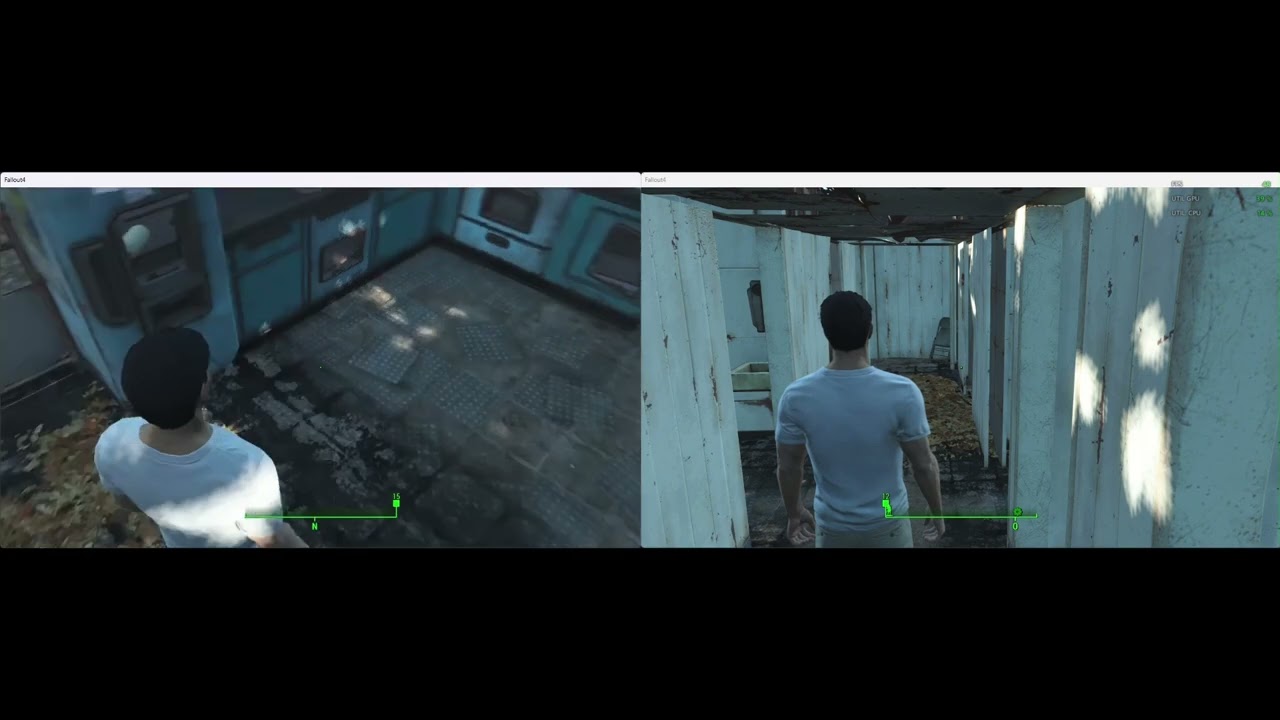

2 clients side-by-side. Movement + full-body animation sync, ground-pickup replication (peer A picks up an item → peer B sees it disappear from the world), and live container UI update across peers (peer A deposits items into a nightstand → peer B's open ContainerMenu reflects the new entries in real time).

---

Architecture

┌────────────────────────────────────────────────────────────────────────┐
│                     Python Server (asyncio UDP)                        │
│  authoritative state · identity-keyed (base, cell) · validator         │
│  reliable channel (SACK + retransmit) · JSON snapshot persistence      │
└─────────────────────────┬──────────────────────────────────────────────┘
                          │ binary protocol v5 (44B POS_BCAST · 36B DOOR_BCAST)
            ┌─────────────┼─────────────┐
            │             │             │
       ┌────▼─────┐  ┌────▼─────┐  ┌────▼─────┐
       │ Client A │  │ Client B │  │   ...    │
       │  FO4 +   │  │  FO4 +   │  │  Up to   │
       │ dxgi.dll │  │ dxgi.dll │  │  10      │
       │  proxy   │  │  proxy   │  │  peers   │
       └──────────┘  └──────────┘  └──────────┘
       Each client:
       - 1 LOCAL player (vanilla FO4 controls, full anim)
       - N GHOST bodies (1 per remote peer, native scene graph)

Repository layout

Path	Purpose
fw_native/	C++ native client (dxgi.dll proxy + MinHook + scene graph injection)
fw_native/src/native/	Strada B native injection (NIF loader, scene graph, ghost body)
fw_native/src/hooks/	MinHook detours (kill, container, pos poll, main_menu, worldstate)
fw_native/src/net/	C++ port of Python protocol (byte-identical via static_assert)
fw_native/docs/	Internal docs + tools list
launcher/	Python orchestrator (FO4 INI mgmt, side A/B startup, fw_config.ini)
fw_launcher/	C++ launcher wrapper (FoM.exe)
net/	Python server (asyncio UDP, validator, persistence, snapshot v3)
frida/	Frida JS scripts + Python attach helpers (RE / live tracing)
re/	Reverse-engineering dossiers + IDA Python scripts

Major milestones

Milestone	Status
B0 Networking + native client port	✅ done — 196+ pytest, byte-identical protocol
B1 Container pre-mutation block	✅ done — concurrent TAKE dup race closed
B2 Launcher (FoM.exe)	✅ done — drop-in for start_A.bat/start_B.bat
B3 Auto-load save (delayed LoadGame via WndProc subclass)	✅ done
B4 Worldstate sync (GlobalVar + QuestStage)	🟡 GlobalVar shipped; QuestStage RE done, apply pending wire
M5–M6 Strada B ghost body (NIF native injection + textures)	✅ done — body + head + hands textured, scene graph attached
M7 Ghost animations (local memcpy from PC tree)	✅ superseded by M8P3
M8P1 RE NiAVObject::Load3D	✅ done — sub_1417B3E90 public API
M8P2 RE BSGeometry skin instance offsets	✅ done — +0x140 confirmed
M8P3 Skin pipeline RE + per-bone pose replication	✅ M8P3.23 — body+head+hands animated, see CHANGELOG.md
B5 D3D11 custom render	🗿 not needed — Strada B native injection replaced
B6 World-state sync expansion (composite — 12 wedges, multi-month epic)	🟡 1/12 done
↳ B6.1 Door open/close sync	✅ done — sub_140514180 Activate worker hook + dual-agent RE convergence, 30s demo, see CHANGELOG.md
M9 Equipment sync between peers (clothing + armor visual replication)	🟡 3/6 wedges done + w4 foundation — clothing works end-to-end, weapon visibility on ghost in PoC quality, armor-over-outfits + true BGSMod + material variants pending
↳ M9.w1 Equip event detection + broadcast (sender hook OBSERVE-only)	✅ done — ActorEquipManager::EquipObject/UnequipObject detour, EQUIP_OP/EQUIP_BCAST opcodes (protocol v6), [video coming soon]
↳ M9.w2 Receiver-side NIF resolution + ghost attach + animation	✅ done — TESObjectARMO struct walk, score-based path selection (male 3rd-person preferred over female / 1st-person / faceBones variants), skin-rebind to ghost skel for animation propagation
↳ M9.w3 Biped slot masking (hide ghost body parts under armor)	⏳ — fixes z-fight when armor pieces equipped over outfits (e.g. metal arm over vault suit)
↳ M9.w4 Object Modification (BGSMod) sync — shoulder pads, weapon mods, paint variants	🟡 foundation done in v0.4.0 — wire protocol v9 + mesh-blob pipeline + ghost-weapon state machine + smart NIF resolution. Pistols/melee/launchers visible on ghost as STOCK base. Modded firearms still render as base (no compensator/scope/etc. visible); heavily-modded rifles show one sub-component only. True mod replication blocked on full BSVertexDesc RE — deferred to v0.5+
↳ M9.w5 Peer rejoin equipment-state push	✅ done in v0.3.1 — PEER_JOIN trigger re-arms equip cycle (DONE→ARMED state transition), 1500ms delay, current outfit re-broadcast to newly-joined peer
↳ M9.w6 Material swap variants (rusty/clean raider, paint jobs)	⏳ — RE BSMaterialDB swap path used by nsInventory3DManager::*MaterialSwap*Task
↳ B6.2 Lights toggle sync (lamps, lanterns, generators)	⏳ — same Activate worker pattern as doors, formType filter on 0x20 LIGH
↳ B6.3 Locks state sync (lockpicked → unlocked cross-client)	⏳ — REFR lock extra-data + OnLockedClick callback hook
↳ B6.4 Terminals state sync (hacked / unlocked)	⏳ — TerminalMenu activation event + persisted "hacked" flag
↳ B6.5 NPC actor pos + pose sync	⏳ — extend POSE_BROADCAST to remote actors with authority-per-NPC model. The big one — turns "co-op chat in same world" into "actual multiplayer game"
↳ B6.6 NPC combat target + aggro sync	⏳ — RE CombatController::SetTarget, broadcast NPC→target so observers see "raider shoots peer A" not "raider shoots air"
↳ B6.7 NPC dialogue state + faction joined	⏳ — quest-stage adjacent; brainstorm §3.2 says 10 players = 1 entity, simplifies state
↳ B6.8 Companion state (recruited / position)	⏳ — companions are NPCs with extra ownership flag
↳ B6.9 Cell-cleared status (no respawn after group clear)	⏳ — cleared flag in cell extra-data, persisted server-side
↳ B6.10 One-shot loot pickups (bobbleheads, magazines, holotapes, skill books)	⏳ — single-pickup persistence, partially covered by container kill events
↳ B6.11 Time of day + weather sync	⏳ — GlobalVar GameHour + Sky weather state
↳ B6.12 Workshop / settlement build state sync	⏳ — major epic; build/scrap/move workshop refs + furniture
B7 Rust server port	⏳

Major RE achievements

• Single-instance bypass (1-byte binary patch @ RVA 0xC2FB62) — runs 2 FO4 instances simultaneously on the same machine. Required for local multi-client testing without spinning up a second physical PC. The patch flips a NOP-equivalent on the singleton-check branch.
• apply_materials walker discovery (sub_140255BA0) — the missing step for .bgsm material resolution after standalone NIF load. Documented in re/stradaB_pink_body_solution.txt.
• NIF loader public API (sub_1417B3E90) — bypasses the broken cache wrapper that hangs with naive args.
• Scene graph integration — depth occlusion, lighting, shadows free via BSFadeNode attachment to ShadowSceneNode.
• BSSkin::Instance layout fully RE'd — bones_fb at +0x10, bones_pri at +0x28, boneData at +0x40, skel_root at +0x48. Critical empirical finding via TTD: bones_pri[i] is NOT a NiAVObject** but a direct pointer-to-matrix cache (= bones_fb[i]+0x70). The GPU reads matrices via SRV indirection through this cache. Documented in re/M8P3_skin_instance_dossier.txt.

Changelog

Latest 3 patches summarized below. Full version history in CHANGELOG.md.

M9 v0.4.0 (2026-05-01) — wedge 4 foundation: weapon mesh on ghost (PoC, needs heavy polish) [Video coming soon]

• New protocol v9 message types MESH_BLOB_OP/BCAST (chunked mesh replication, 1372 B chunk_data sized BCAST-safe so server can fan-out without re-fragmentation). Sender extracts BSGeometry leaves from runtime-assembled weapon via 3-level indirection on BSGeometryStreamHelper at clone+0x148. 22 new pytest cases.
• 300 ms deferred mesh-tx via FW_MSG_DEFERRED_MESH_TX/WM_APP+0x4E worker — beats the race against engine's async weapon assembly post- g_orig_equip (immediate walker frequently captures empty).
• Receiver unified state machine ghost_set_weapon(peer, form, candidates[]) — single weapon slot per peer, atomic transitions, downgrade protection (placeholder NIFs never overwrite proper ones), idempotent. All wire receivers (EQUIP_BCAST, MESH_BLOB, UNEQUIP) funnel through.
• Smart NIF resolution chain: canonical Weapons\X\X.bgsm pick → folder-derived canonical (Weapons\MachineGun\MachineGun.nif from sub-component bgsm paths) → all sub-component bgsm-derived → legacy TESModel probe (extended [0x60..0x180] range + generic Dummy filter).
• ⚠️ Hard-won PoC, NOT production. Working: pistols, baton, Fat Man, Grognak's Axe, Deathclaw Gauntlet visible on ghost as STOCK base. Modded firearms render without mod parts. Heavily-modded rifles show only one sub-component (just the barrel for assault rifle, just the stock for shotgun). Hunting rifle invisible. True mod replication blocked on full BSVertexDesc RE — see CHANGELOG.md "Why this was extremely hard" for the 10-point list of engine constraints fought (runtime-assembled weapons with no static NIF, async assembly walker race, donor shader vd mismatch crashes, server fan-out chunk-overflow, downgrade races, cross-form mesh contamination, ...). Tag: v0.4.0-w4-foundation.

M9 wedge 1+2 (2026-04-29) — clothing sync between peers [Video coming soon]

• Sender hooks ActorEquipManager::EquipObject/UnequipObject (sub_140CE5900 / sub_140CE5DA0), filters local-player only, broadcasts EQUIP_OP with {item_form_id, kind, slot_form_id, count}. Protocol bumped to v6.
• Receiver walks TESObjectARMO+0x2A8 addon array → TESObjectARMA → embedded TESModel → BSFixedString path. Score-based offset probing picks male 3rd-person variant over _F.nif female / 1stPerson arms-only.
• Loads NIF via g_r.nif_load_by_path + POSTPROC for material/texture resolution → attach_child_direct to ghost root → skin_rebind:: swap_skin_bones_to_skeleton re-binds armor's bones_fb[i] from inert NIF stub bones to ghost's animated skel.nif joints → animation propagates from pose-rx to armor mesh.
• Per-peer FIFO pending queue handles boot-time race: when peer's force- equip-cycle broadcast arrives before ghost is spawned, ops are queued and drained on next inject_debug_cube success.
• Live-tested: peer A equips Vault Suit (0x1EED7) / Raider Underarmor (0x18E3F7) → peer B's ghost-of-A wears + animates with same outfit. Bidirectional. PoC; armor pieces over outfits z-fight (no biped slot masking yet), BGSMod attachments not covered, A-first-B-later case open. See CHANGELOG.md.

B8 (2026-04-28) — force-equip-cycle on game start ⚠️ workaround

• Three days of equip-related crashes resolved by exercising the player's BipedAnim through ActorEquipManager once before any peer connects. Worker fires 10s post-LoadGame: posts WM_APP+0x4A to unequip Vault Suit, waits 2s for biped rebuild to settle, posts WM_APP+0x4B to re-equip → BipedAnim allocator state normalizes from semi-allocated pool refs to fully heap-owned → M8P3 ghost binding latches onto stable pointers and equip changes post-peer-connect no longer dangle.
• Tag: v0.2.1-equip-stable.
• ⚠️ Band-aid, not architectural fix. Hardcoded to Vault Suit 0x1EED7; saves without it silently no-op. Proper fix is independent ghost skeleton.nif (Option C). See CHANGELOG.md.

Why this exists

I've been waiting ~10 years for someone to ship Fallout 4 multiplayer. Existing efforts I'm aware of:

• Fallout Together — abandoned 2020, never reached stable bone replication.
• F4MP — paused / no animation system in the public state I last saw.
• Skyrim Together (predecessor for SkyrimSE) — got working but with desync issues that informed several of the architecture choices here.

This project takes a different architectural bet: native scene-graph injection (BSFadeNode → ShadowSceneNode) plus per-bone joint replication via the engine's own UpdateDownwardPass propagation, instead of reimplementing skinning from scratch. We let the engine do the heavy lifting (skin upload, GPU constant buffers, lighting, shadows when fixed) and feed it joint matrices via memory writes that match exactly what its anim graph would produce.

Whether this scales cleanly to 10 peers is an open question — current testing is 2-peer. The RE work for the 1.11.191 next-gen build (skin pipeline, pointer-cache layout, NIF loader API) is the contribution that should be most reusable for anyone else attempting the same thing.

Known limitations

• Fingers don't articulate — finger joints exist only in the underlying havok skeleton (.hkx), not in the rendered scene-graph tree we walk. Receiver gets a sentinel quat for them and falls back to bind pose (slightly curled fingers, not extended T-pose).
• 1st-person sender → ghost adopts V/T-pose stub — when the sender is in 1P view, the engine animates the alt-tree body to a simplified stub pose since the body is invisible to the local camera. Two detection heuristics were tried (Pelvis canary, rotation hash); both failed because the alt-tree retains all named bones and rotations jitter every tick. Proper fix needs PlayerCamera singleton RE. Workaround: keep the observed peer in 3rd-person.
• Ghost body has no shadow — separate render flag investigation, deferred.
• PipBoy animation is broken on the ghost — when a peer opens their PipBoy, the engine plays a 1st-person camera-relative arm-raise anim on the local player. The ghost on observers' screens has no equivalent 3rd-person animation set up (vanilla FO4 doesn't really animate a remote player's PipBoy because there are no remote players in vanilla), so the ghost's arms freeze / contort during the peer's PipBoy session. Cosmetic, doesn't crash. Workaround / future wedge: detect peer-PipBoy state and either despawn ghost or play a static "looking at PipBoy" placeholder pose.
• Tested with 2 peers — multi-peer ghost cache (peer-id keyed registry) not yet implemented; 10-peer scaling is theoretical.
• Network rate-limited to 20Hz — works smoothly on LAN, untested over real-world internet routes; receiver-side interpolation between POSE_BROADCAST frames is open work.
• Modded weapons render as STOCK on ghost — M9.w4 v0.4.0 ships the pipeline (mesh-blob wire + state machine + NIF resolution) but the receiver doesn't reconstruct mod parts. Compensator / scope / custom barrel / paint variants on a peer's weapon are NOT visible to other peers; they see the base weapon NIF only. True mod replication blocked on full BSVertexDesc RE — needed to rebuild factory-output BSTriShapes that the engine's existing shaders accept (donor shader cloning crashed in render walk every time during v0.4.0 iteration — vd format mismatch). Deferred to v0.5+. See CHANGELOG.md "Why this was extremely hard" for the full investigation.
• Heavily-modded rifles show only ONE sub-component on ghost — assault rifle renders just the barrel; double-barrel shotgun renders just the wood stock. The receiver's smart NIF resolution picks the first loadable candidate from the wire's bgsm paths; for runtime- assembled rifles that's a sub-component (MachineGunBarrelLong01.nif) rather than an assembled weapon (the latter doesn't exist as a static NIF — it's composed at EquipObject time from N sub-NIFs).
• Hunting Rifle invisible on ghost — neither the canonical bgsm pick nor the folder-derived heuristic (Weapons\HuntingRifle\HuntingRifle.nif) finds a loadable NIF; falls back to RecieverDummy.nif placeholder (empty NIF). Likely needs a hard-coded path table or a different resolution strategy.
• Cross-form mesh contamination — walker on the sender sometimes captures bgsm paths from a PREVIOUSLY-equipped weapon still residing in the player's bipedAnim subtree (observed: assault rifle equip captures hunting rifle 308Casings bgsm paths). Receiver gets contaminated candidate list; usually still loads correctly thanks to the multi-candidate try-each fallback, but path resolution is brittle.

Reverse-engineering target

Fallout4.exe 1.11.191 next-gen (December 2025). ImageBase 0x140000000 (no ASLR in practice). IDA Pro 9.3 used for static decomp; cached DB at re/Fallout4.exe.i64 (NOT committed — proprietary format + size). Regenerate locally from your own copy of Fallout4.exe.

License

Personal mod project. Not distributed. Requires owned copy of Fallout 4. No Bethesda IP committed to this repo (no game binaries, no BA2 contents, no decomp dumps — only our own analysis dossiers).

Notes

• RE dossiers (English, public): re/M8P{1,2,3}_*.txt, re/M8_strategic_decision.txt — full reverse-engineering writeups for the player-creation pipeline (NIF loader API, BSGeometry skin instance layout, BSSkin pipeline + bones_pri pointer cache).
• Full version history: CHANGELOG.md
